Best-in-Class Power Transmission Chains
From industry-standard to custom-machined power transmission chains, we provide expert advice to help you select the right part for your needs. We offer an extensive selection of top-quality power transmission chains and practical sourcing solutions at competitive prices. Whether you're in need of a replacement or new power transmission chains, our diverse stock covers a wide range of applications and sizes.
Understanding Power Transmission Chains
Power transmission chains consist of two or more interconnected mechanical components used to transmit power or materials from one location to another. The type of chain required depends on the application, operating environment, and the physical stresses and demands placed on the system.
Your Trusted Supplier of Power Transmission Chains
We supply a comprehensive range of power transmission chains, including:
Industrial Roller Chain
Pintle Chain
Engineered Class Chain
Self-Lube Roller Chain
Corrosion Resistant Chain
Attachment Chain
Forged Chain
Leaf Chain
Riveted Roller Chain
Stainless Steel Riveted Roller Chain
Double Pitch Roller Chain
Side Bow Chain
Silent Chain

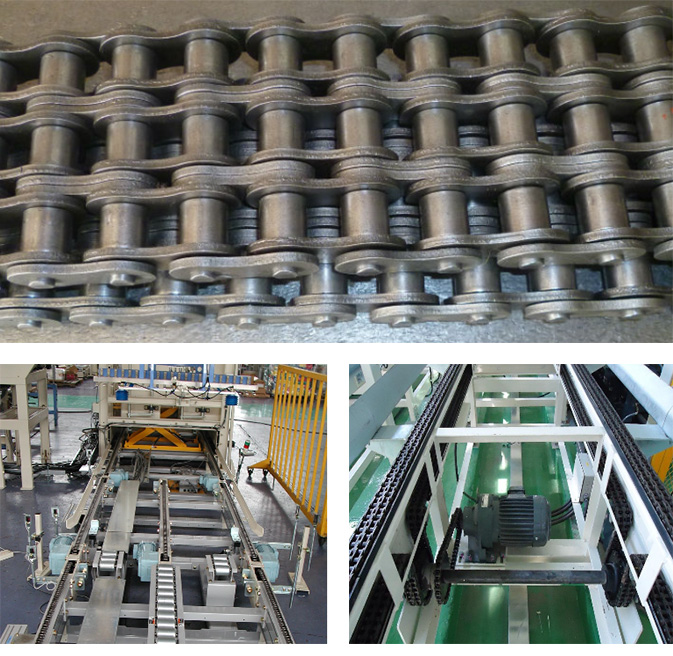

Roller Chain: The Most Recognized Power Transmission Chain
A roller chain is the most common and easily recognizable type of chain, often seen in applications like bicycle chains. Roller chains are classified by their pitch and roller type, with standard sizes such as 40, 60, and 80 Chain. The pitch of a chain is determined by the first number in its designation and is measured in eighths of an inch. For example:
30 Chain has a pitch of 3/8 inch (0.375”)
80 Chain has a pitch of 8/8 inch (1.000”)
The second number indicates the roller type:
0 = Standard construction with a roller
1 = Lightweight construction
2 = Oversize roller
5 = Rollerless
Heavy Series Roller Chain
The heavy series roller chain features sidebars that are equivalent to the next size larger chain, along with contoured side plates. These enhancements provide added fatigue resistance, making them suitable for high-stress applications.
Steel Pintle Chain
Steel pintle chains are ideal for various applications, such as salt, sand, and fertilizer spreaders, hay handling, and similar conveying systems. Their open barrel construction reduces pin surface contact within the barrel, preventing seizing due to corrosion. This design also minimizes material build-up in the barrel and sprocket root, ensuring smoother operation and extended chain life.
Engineered Class Chain
Engineered class chains are characterized by large pitch sizes, higher safety factors, and greater clearances. These chains may feature specialized attachments, materials, seals, or plating tailored to specific applications and environments. They are rated by workload and strength, and most fall into the following categories:
Drive Chain
Roller Conveyor Chain
Bushed Chain
Bar and Pin Chain
Barloop Chain
Detachable Link Chain
Plastic Engineering Chain
GIDI CHAIN LIMITED supply lots of roller chain, conveyor chain, Leaf Chain, welded chain, forged chain, Palm Oil Mill Chain, Hoisting Chain,Mine and Metallurgy Chain, etc. totaling over 3000 varieties. and 90% of chains are exported to worldwide, Which mainly export to Southeast Asia, European, North America, South America. Chains are welcomed by customers with the excellent quality. Our company owns more than 100 sets of advanced and professional manufacturing equipment, Perfect and rigorous QC system is implemented in every process from material purchasing to finished products packaging. Also, we have passed the ISO9001: 2015 Quality Management System Certification.
More Detail : www.gidi-chain.com
